J599E8 Taxanaha Fiber Optic Xidhiidhiyaha Balaadhinta
Product Description
A high-reliability expanded beam fiber optic connector designed to meet GJB599B/MIL-DTL-38999 Series III interface requirements, with performance compliant with ARINC 801 standards, delivering exceptional optical performance in demanding aerospace and defense environments.
The non-contact expanded beam optical structure ensures stable transmission under dust, vibration, and repeated mating/unmating conditions. The ceramic O-ring sleeve provides superior port protection, significantly extending service life.
Features Key
- GJB599B (MIL-DTL-38999 III) interface compatible, optical performance meets ARINC 801 standard
- Designed for multi-channel optical communication in aviation, electronics, and marine systems
- Beam-expanding lens design for true non-contact optical docking
- Closed O-ring ceramic sleeves greatly improve insertion/removal endurance
- Excellent dust resistance, suitable for harsh environments
- Easy termination and extraction using standard M81969/14-03 tools
sooc Technical
Waxqabadka Makaanikada
| dhimaya | faahfaahinta |
| Nolosha farsamada | 2000 mating cycles (plug/unplug) |
| Resistance Resistance | Peak acceleration: 2940 m/s²Duration: 3 msSpeed change: 5.61 m/s |
| gariirka | Frequency: 10 Hz – 2000 HzPower spectral density: 0.4 G²/HzAcceleration (RMS): 23.1 G |
| Resistance Tensile | ≥ 68 N (Fiilo Φ2 mm ah) |
Waxqabadka Deegaanka
| dhimaya | faahfaahinta |
| Heerkulka Operating | −55 °C ilaa +125 °C (iyadoo ku xiran fiilada) |
| Iska caabinta ceeryaamo milix ah | K: 500 hF: 48 hW: 500 hMW: 192 h (acidic atmosphere) |
| Airtightness (airtight adapter socket) | Gas leakage rate ≤ 1 × 10⁻⁹ Pa`m³/sPressure differential: 1 atm |
Waxqabadka indhaha
| dhimaya | faahfaahinta |
| Loss galinta | ≤ 0.6 dB @ 850 nm≤ 1.0 dB @ 1310 nm |
| Loss noqo | ≥ 20 dB @ 850 nm≥ 45 dB @ 1310 nm |
Xidhiidhiyayaasha Laydhka ee La Ballaariyay ee Gaarka ah & Beddelka Lagu Kalsoonaan Karo ee Noocyada Caalamiga ah ee Hormoodka ah
Waxaan bixinaa isku xirayaasha fiber optic-ga ee la ballaariyay ee loo habeeyay baahiyahaaga saxda ah ee codsiga, iyadoo la bixinayo beddello kharash-ool ah oo lagu kalsoonaan karo oo loogu talagalay noocyada waaweyn ee caalamiga ah. Laga bilaabo naqshadeynta ilaa isku-darka fiilooyinka, kooxdayada injineerinka waxay hubineysaa is-dhexgal aan kala go 'lahayn iyo waxqabad lagu kalsoonaan karo oo ka jira jawi adag.
Codsiyada Shaqaalaha Cusub
Aerospace & Avionics
Waxaa loo isticmaalaa nidaamyada diyaaradaha halkaas oo iska caabbinta gariirka iyo gudbinta indhaha ee la isku halleyn karo ay muhiim yihiin.
Milatariga & Difaaca
Waxay bixisaa isku xidhka fiilada oo deggan oo loogu talagalay isgaarsiinta xeeladeed ee jawiyada boodhka iyo shoogga sare leh.
Badda iyo Badda
Ku habboon nidaamyada maraakiibta iyo kuwa badda ee la kulma qoyaanka, buufinta milixda, iyo xaaladaha adag.
Deegaannada Warshadaha & Adag
Hubinta gudbinta xogta ee lagu kalsoonaan karo ee warshadaha, macdanta, iyo codsiyada saliidda iyo gaaska.
Baahinta & Isgaarsiinta Dibadda
Ku habboon baahinta bannaanka iyo shabakadaha goobta ee u baahan isku xirka fiilooyinka degdega ah oo la isku halleyn karo.
FAQ
1. Waa maxay isku xidhaha fiber optic-ga ee la ballaariyay?

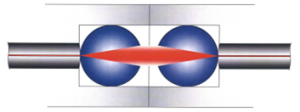

Xidhiidhiyayaasha iftiinka ee la ballaariyay waxay isticmaalaan muraayadaha indhaha si ay u ballaariyaan oo ay u ururiyaan iftiinka iftiinka, taasoo u oggolaanaysa gudbinta indhaha ee aan taabashada lahayn. Naqshaddani waxay hagaajinaysaa iska caabbinta boodhka iyo wasakhda.
2. Heerarkee ayay isku xirayaashaadu taageeraan?
Xidhiidhiyayaashayada waxaa loogu talagalay inay u hoggaansamaan heerarka MIL-DTL-38999, MIL-DTL-83526, iyo ARINC 801.
3. Ma taageertaa habaynta?
Haa. Waxaan bixin karnaa xalal gaar ah oo ay ku jiraan tirinta fiilooyinka, isku xirka isku xirka, iyo isku xirka fiilooyinka iyadoo loo eegayo shuruudaha mashruuca.
4. Alaabtaadu ma beddeli kartaa noocyada caalamiga ah ee caanka ah?
Haa. Xidhiidhiyayaashayada la ballaariyay ee iftiinka waxaa loogu talagalay inay bixiyaan waxqabad la mid ah noocyada caalamiga ah ee hormuudka ka ah, iyagoo bixinaya habayn dabacsan iyo qiimo tartan ah.
5. Waa maxay warshadaha isticmaala isku xidhayaasha alwaaxa ee la ballaariyay?
Waxaa si weyn loogu isticmaalaa hawada sare, difaaca, qalabka warshadaha, nidaamyada isgaarsiinta bannaanka, iyo codsiyada deegaanka ee adag.
6. Waa maxay faa'iidooyinka isku xidhayaasha alwaaxda ee la ballaariyay?
Iska caabin xooggan oo ku wajahan boodhka iyo wasakhowga; Cimri dheer oo isku-dhafan; Shuruudaha nadiifinta oo yaraaday; Waxqabad lagu kalsoonaan karo oo ku saabsan jawi adag.
Maxaad Nala Shaqeyn Kartaa?
Soo-saaraha Xidhiidhiyaha Birta ee Xirfadlaha ah
Waxaan bixinaa isku xirayaasha fiber optic-ga ee la ballaadhiyay oo lagu kalsoonaan karo oo loogu talagalay codsiyada adag sida hawada sare, difaaca, iyo nidaamyada warshadaha.
Iswaafajinta Heerka Caalamiga ah
Xidhiidhiyayaashayada waxaa loogu talagalay inay u hoggaansamaan heerarka warshadaha sida MIL-DTL-38999, MIL-DTL-83526, iyo ARINC 801, taasoo hubinaysa is-dhexgal aan kala go 'lahayn oo lala yeesho nidaamyada jira.
Karti Naqshad Gaar ah
Waxaan taageernaa habaynta dabacsan oo ay ku jiraan cabbirka qolofka, tirada fiilooyinka, isku-xidhka fiilooyinka, iyo xalalka isku-dhafka ah ee indhaha/korontada si loo daboolo shuruudaha mashruuca gaarka ah.
Beddel lagu kalsoonaan karo oo loogu talagalay Noocyada Caalamiga ah
Xalalkayagu waxay bixiyaan isku halayn iyo waxqabad sare oo la barbar dhigi karo noocyada isku xirka caalamiga ah ee hormuudka ka ah, iyagoo macaamiisha siinaya beddel kharash-ool ah oo lagu kalsoonaan karo.
Tayada & Kalsoonida
Dhammaan alaabada waxaa la mariyaa tijaabo adag si loo hubiyo waxqabadka indhaha oo deggan iyo cimri dheer oo adeeg ah oo ku jira jawi adag.
Adeeg xirfad yaqaan
Waxaan bixinaa taageero farsamo oo dhammaystiran laga bilaabo xulashada isku xirka iyo habaynta ilaa isu-imaatinka fiilooyinka, rakibidda, iyo taageerada injineernimada muddada-dheer.
Request a quote today and find the right expanded beam connector for your project！
