LK-D-SS-12-T Taxanaha Khadka Dib-u-dhaca indhaha & Jilbaha indhaha
- Bandwidth ilaa 12GHz
- Kala duwanaanshaha firfircoonida sare
- Codsiga heerkulka ballaaran
- Jawaabta baaxadda hoose
- Dib-u-dhac waqti la habeeyey
Product Description
Ku tiirsanaanta tikniyoolajiyada sawir-qaadista mikrowave, taxanaha LK-D-SS-12-T ee khadadka daahitaanka indhaha iyo jilayaasha indhaha ayaa bixiya waxqabad aad u wanaagsan waxaana si weyn loogu isticmaalaa tijaabinta radar, habaynta calaamadaha, anteenooyinka qaabaynta weji, jilitaanka anteenada iyo tijaabinta buuqa wejiga. Aaladuhu waxay awood u leeyihiin inay si hufan uga shaqeeyaan guud ahaan guud ahaan L/S/C/X band soo noqnoqda oo leh luminta gelinta hoose, baaxadda firfircoonida sare, go'doominta korantada ee xooggan, iyo awoodda ay ku xakamayso calaamadaha gudbinta saddex-geesoodka ah ee aan la qiyaasi karin. Astaamahani waxay ka dhigayaan mid ku habboon farsamaynta calaamadaha indhaha ee saxda ah ee saxda ah.
sooc Technical
Tilmaamaha Korontada / indhaha
| dhimaya | Qiimayaasha Halbeegga | Unit | tacliiq | ||
| Min | caadiga | Max | |||
| Range Frequency | 1 | - | 12 | GHz | |
| Balaadhan Flatness | - | ± 2 | ± 2.5 | dB | |
| Waqtiga Dib-u-dhiska | 0.01 | - | 150 | us | kartoo |
| Dib u dhigida Saxnaanta | -5‰ | - | +5‰ | - | |
| Loss galinta | 0 | 20 | 30 | dB | kartoo |
| Gelinta VSWR | - | 1.8 | 2 | - | |
| Wax soo saarka VSWR | - | 1.8 | 2 | - | |
| Impedance | - | 50 | - | Ω | |
| Gelida 1 dB Cadaadiska | - | + 13 | + 17 | dBm | |
| Saamiga Diidmada Calaamadaha Xun | 60 | - | - | dBc | |
| Sawirka buuqa | - | 45 | 55 | dB | 5us, 25 ℃ |
| Ku shaqee kuleylka | -55 | - | + 85 | ℃ | Eeg Macluumaadka Dalbashada |
| Heerkulka Kaydinta | -55 | - | + 85 | ℃ | |
| Daahitaanka Qaraabada vs. Heerkulka | - | - | 7 | ppm/℃ | |
| Gelida khasaaraha iyo heerkulka | - | 2 | 4 | % / ℃ | |
Sharaxaada Xidhiidhiyaha & Bixinta Korontada
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| danab | NC | GND | + 12V | NC |
| Qiimaynta Hadda | - | - | 0.3 | - |
| Max Maanta | 1 |

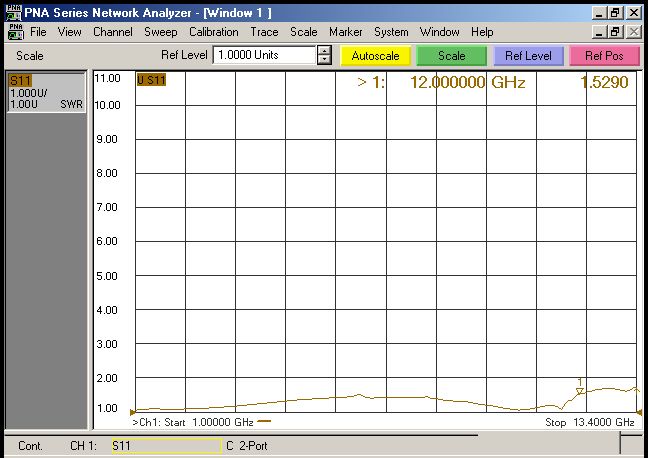

Curfyada Jawaabta Caadiga ah (25℃)
Cabbirka iyo biinanka ( Cutub: mm[inch])
Xidhiidhiyaha RF: SMA-K (la habeeyey)
Xidhiidhiyaha DC: DE-9PS (la habeeyey)
| Product Type | LK-D-SS-12-TG | tacliiq | |||||
| Waqtiga dib u dhaca (annaga) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| Product Type | LK-D-SS-12-TP | tacliiq | |||||
| Waqtiga dib u dhaca (annaga) | 8 | 35 | 60 | 80 | 110 | 150 | Compact |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
dalbashada Information
| Product Type | Baakado | Heerarka tayada | Ku shaqee kuleylka | Heerkulka Kaydinta |
| LK-D-SS-12-TGI | Standard | Heerka warshadaha | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TGM | Heerka dhexe | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TGS | Darajo gaar ah | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-12-TPI | Compact | Heerka warshadaha | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TPM | Heerka dhexe | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TPS | Darajo gaar ah | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
tacliiq:1. T waa xariiqda dib u dhigista ugu badan ee halbeegga microsecond(annaga).
Codsiyada
Tijaabada Raadaarka/habaynta
Meelmarinta saxiixa
Dagaal elektaroonig ah
Diyaarinta anteeno weji leh
Jilitaanka anteenada
