LK-NYC04D DML DFB Gudbiyaha
- DML DFB Laser Technology
- Dhaqdhaqaaq sare-Range
- Bandwide ka fiican 4GHz
- Waafaqsanaanta Mawjada CWDM
- isticmaalka awoodda Low
- kharashka Low
Product Description
Gudbiyaha LK-NYC04D DML wuxuu ugu horrayn ka kooban yahay DML DFB laser, si toos ah kontoroolka korantada indhaha, wareegga beddelka korantada, iyo kormeerka wareegga tilmaanta. Gudbiyahani waxa uu leeyahay mawjadaha dhererka leysarka DML ee la socda heerka CWDM, gaar ahaan 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, iyo 1370nm.
Waxa ay bixisaa xawaaladaha wax-ka-beddelka ah ee ka sarreeya 4GHz waxayna keeni kartaa koronto ka sarreysa 2mW. Module-ku waxa uu ku shaqeeyaa hal koronto oo togan waxaana loogu talagalay in uu si la isku hallayn karo ugu shaqeeyo inta u dhaxaysa +7V ilaa +36V. Intaa waxaa dheer, moduleka waxaa lagu qalabeeyay tilmaame xaqiijinaya sida caadiga ah ee korontada iyo soo saarista tamarta indhaha, fududeynta fududaynta kormeerka iyo dayactirka.
sooc Technical
Qiimeynta Ugu Sareysa
| dhimaya | calaamad | Min. | Nooc | Max. | Unit |
| heerkulka kaydinta | TSTG | -40 | + 25 | + 70 | ℃ |
| Heerkulka hawlgalka | TC | -20 | + 25 | + 55 | ℃ |
| Awood gelinta RF1 | Pin | - | 0 |
+ 17 | dBm |
| danab | Vin | +7 | + 12 | + 36 | V |
Cadaynta indhaha iyo korantada (TC = 25 ℃)
| dhimaya | model | calaamad | Min. | Nooc | Max. | Unit | tacliiq |
| Milanello | UC | λ | 1270 | 1310 | 1370 | nm | Heerka ITU |
| LC | - | CWDM | - | ||||
| Soo noqnoqoshada (3dB) | - | f3dB | 0.1 | - | 4 | GHz | - |
| Awood wax soo saarka indhaha | - | P | - | 1 | - | mW | - |
| Qaybta Xannibaadda Ugannimada | UC | rhine | - | - | -150 | dBc/Hz | - |
| LC | - | - | -155 | ||||
| VSWR | - | VSWR | - | - | 2 | ||
| Gelida 1 dB Cadaadiska | - | - | - | + 10 | - | dBm | - |
Korontada (TC = 22± 3℃)
| dhimaya | Min. | Nooc | Max. | Unit |
| danab | +7 | + 12 | + 36 | V |
| hadda Jira(2) | 0.03 | 0.1 | 0.15 |
A |
(1) Xaaladda tijaabada: Vin=+12V.
● Xogta Caadiga ah

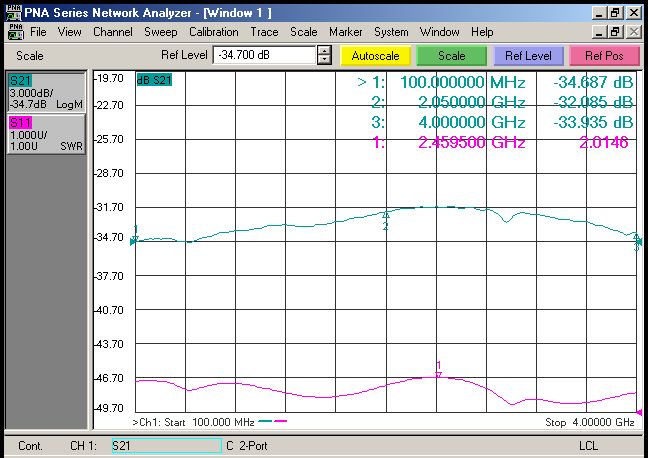

Jaantuska 1 LK-NYC04D-CL DML DBF Laser Curve Caadiga ah
Jaantuska 2 LK-NYC04D-UC DML DBF Laser Curve Joogtada Caadiga ah
● Qalooca spectral ee caadiga ah

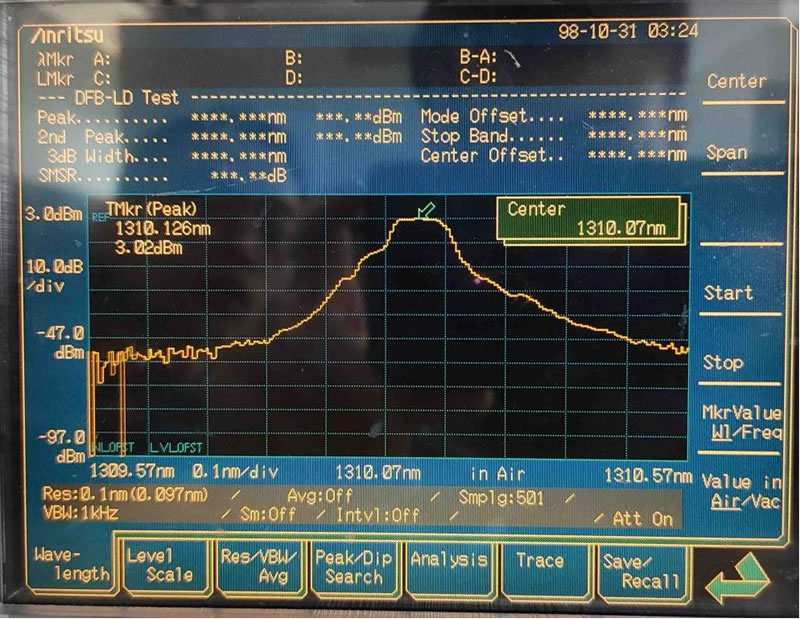

Jaantuska. 3 LK-NYC04D DML DBF Laser Curve spectrum caadiga ah
● Unugga cabbirka:mm[inch]

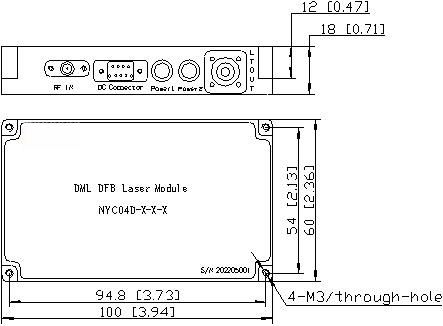

Jaantuska 4 LK-NYC04D DML DBF Cabbirka Gudbinta
Xidhiidhiyaha RF: SMA
Xidhiidhiyaha Korontada:J30J-9-ZKP
● Macluumaadka Dalbashada
Xaashida 1:
| model | Dhererka Mawjada |
| UL | 1310nm |
| CL | CWDM (mawjadaha ikhtiyaariga ah) |
Xaashida 2:
| model | Power |
| 00 | 1mW |
| 02 | 2mW |
| 04 | 4mW |
| 06 | 6mW |
Xaashida 3:
| model | isku xira | tacliiq |
| N | Maya | Flange |
| A | FC/APC | Heerka 9/125μm SM Fiber |
| P | FC / PC | Heerka 9/125μm SM Fiber |
Codsiyada
Anteenada fogaynta
Shabakadaha gacanta iyo PCS
Analog RF isku xirka gudbinta
Dabagalka, Telemetry, iyo Xakamaynta
Isgaarsiinta Wireless Broadband
