LK-AMPD-D Xawaaraha Sare ee La Kordhiyey Microwave InGaAs Sawir-qaade
- Xawaaraha sare, Bandwidth ballaaran
- Eexda lagu daray
- Isku-dhafka O/E Hybrid
- Faa'iido Sarreysa, Qaylo Yar, Broadband
- Hermetically Seed, Xiriiriyaha SMA
- Madow Hoose, Saamiga signal-ilaa-sanqa sare.
- Qodobka Foomka Yar.
Product Description
LK-AMPD-D waa isku-darka qaybaha indhaha iyo elektiroonigga ah, oo leh muuqaal ballaadhan InGaAs photodiode iyo cod-weyneeye dhawaaq-yar. InGaAs PIN photodiode waxa uu leeyahay dareen dareen ah oo u dhexeeya 1000 ilaa 1650nm. Cod-weyneeye dhawaq-yar wuxuu ku faanaa faa'iidada RF ee 30dB.
LK-AMPD-D waxay awood u leedahay inay gudbiso xadhkaha xadhkaha goosadka ah ee 12GHz ama 20GHz. Qalabkani wuxuu ku shaqeeyaa koronto +9V. Waxaa loogu talagalay in ay la shaqeyso hal-habka caadiga ah ee 9/125μm fiber sida gelinta. Wax soo saarka RF waxa uu leeyahay isku xidhaha nooca SMA-ga kaas oo ku habboon 50 ohms.
LK-AMPD-D waxa loo xidhay hab ka hortagaya soo gelitaanka qoyaanka iyo wasakhowga kale, waxana uu miisaankiisu ka yar yahay 23 garaam. Waxaa la xaqiijiyay inay buuxisay shuruudaha Xadaynta Walxaha halista ah (RoHS) Awaamiirta 2.0.
sooc Technical
| Qiimaynta Caadiga ah & Ugu Sarreysa | ||||
|---|---|---|---|---|
| dhimaya | Calaamadda. | nooca | Rating | Unit |
| Xaddiga heerkulka kaydinta | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Kala duwanaanshaha heerkulka kiiska shaqaynaya | TC | 25 | -40 ～ +85 | ℃ |
| Eexda Voltage | VR | +9 | +9 ～ +12 | V |
| Awood wax-gelinta indhaha | Pin | 0 | + 10 | dBm |
| Korontada indhaha oo gubatay | PB | - | + 13 | dBm |
| Heerkulka alxanka rasaasta | Tp | 280 (10s) | 330 (10s) | ℃ |
| Tilmaamaha Korontada / indhaha (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| dhimaya | Calaamadaha | Xaaladda Tijaabada | Qiimayaasha Halbeegga | Unit | ||
| Xadka Wavelength | λ | - | 1000 ilaa 1650 | nm | ||
| Heerka Joogtada ah | - | - | X - Band | Ku - Band | - | |
| Bandwidhthka Calaamadaha Yaryar | f-3dB | TC = 22 ± 3 ℃ | 0.3 ilaa 12 | 2 ilaa 20 | GHz | |
| Waxqabadka | Re | VR =+9V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Balaadhan Flatness | A | TC = -45～+85 ℃ | ≤ ± 2 | dB | ||
| Awoodda indhaha ee saturation | Ps | VR = +9 V, λ = 1550 nm AC Modulated | + 10 | dBm | ||
| Faa'iidada ishaarada RF | G | - | 30 ± 1 | dB | ||
| Qulqulka RF Awoodda Soo saarista | Pbaxay | - | + 10 | dBm | ||
| Wax soo saarka VSWR | VSWR | - | 2 XNUMX | - | ||
| Saamaynta Wax Soo Saarka | RL | - | 50 | Ω | ||
●Qalloocyada Jawaabta Caadiga ah

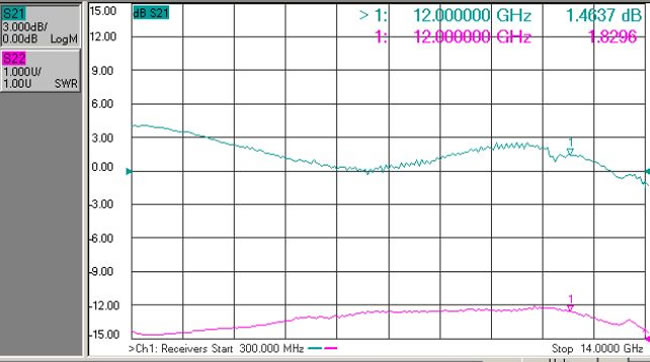

(Sawirka. 1 X- Jawaabta Soo noqnoqda Sawir-qaade-Band)
(Sawirka. 2 Ku - Jawaabta Soo noqnoqoshada Sawir-qaade ee Band)
●Cabbirka iyo biinanka ( Cutub: mm[inch])
Xidhiidhiyaha RF: SMA
●dalbashada Information
Xaashida 1:
| Code | Faa'iidada ishaarada RF | tacliiq |
| D | 30 dB | Caadiga ah & Inta jeer ee Xarunta |
Xaashida 2:
| Code | Analog Bandwidth |
| X | 0.3 ～ 12 GHz |
| Ku | 2 ～ 20 GHz |
Xaashida 3:
| Code | isku xira Type | tacliiq |
| N | Xiriiriye ma jiro | Hal-hab 9/125 μm fiber pigtail |
| A | FC/APC | |
| P | FC / PC |
●Taxadarka
Fiber-ku-laabashada oo aan ka yarayn 20 mm si looga fogaado waxyeellada fiber-ka.
Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.
Ilaalinta ESD ee ku haboon ayaa looga baahan yahay kaydinta, gaadiidka iyo isticmaalka .
Dhammaan sawir-qaadayaashayada caadiga ah waxaa loo habeyn karaa qaybo!
Codsiyada
Nidaaminta Macluumaadka Raadaarka
Dagaal Elektaroonig ah
Cabbirka Anteenada
Isgaarsiinta Fiber Optic
Amniga iyo Kormeerka
