LK-FCAMPD RF InGaAs Sawirqaade La Weyneeyay

  • Ballaadh ballaadhan
  • Eexda lagu daray
  • Isku-dhafka O/E Hybrid
  • Faa'iido Sarreysa, Qaylo Yar, Broadband
  • Xiriiriyaha SMA
  • Hadda Madow Hoose, Saamiga signal-ilaa-sanqa sare
  • Qodobka Foomka Yar.
WEYDIISASHADA

+ 86 29 88244373

Product Description

LK-FCAMPD waa isku-darka tignoolajiyada indhaha iyo elektiroonigga ah, isku-dhafka ballaaran ee InGaAs photodiode oo leh cod-weyneeye dhawaq yar. Qalabkani waxa uu xasaasi u yahay mowjadaha u dhexeeya 1000 iyo 1650nm, taas oo ay ugu wacan tahay InGaAs PIN photodiode, iyo cod-weyneeye dhawaqiisu waxa uu bixiyaa faa'iidada RF ee u dhaxaysa 20 ilaa 30dB.

LK-FCAMPD waxay bixisaa ikhtiyaarada xajmiyeedka la habeyn karo, oo ay ku jiraan 1 gigahertz, 2.5 gigahertz, iyo xajmiyada la habeyn karo ilaa ugu badnaan 5 gigahertz. Qalabku wuxuu ku shaqeeyaa koronto +5-volt ah wuxuuna leeyahay xargaha caadiga ah ee FC (wejiga-xiriirka) ee isku xirka fiber-optic ee gelinta indhaha. Wax soo saarka RF waxaa lagu fududeeyay isku xiraha ku habboon SMA, kaas oo ku habboon 50 ohms.

LK-FCAMPD waa mid fudud, oo leh cuf ka yar 25 garaam, taas oo ka dhigaysa mid ku habboon codsiyada kala duwan ee la qaadi karo iyo kuwa is haysta. Waxaa la xaqiijiyay inay u hoggaansanto Xaddidaadda Walxaha halista ah (RoHS) Awaamiirta 2.0, taasoo muujineysa sida ay uga go'an tahay heerarka deegaanka iyo badbaadada.

sooc Technical
Qiimaynta Caadiga ah & Ugu Sarreysa
dhimaya Calaamadda. nooca Rating Unit
Xaddiga heerkulka kaydinta TSTG -45 ～ +85 -55 ～ +100 ℃
Kala duwanaanshaha heerkulka kiiska shaqaynaya TC 25 -40 ～ +70 ℃
Eexda Voltage VR +5 +4.75 ～ +5.25 V
Awood wax-gelinta indhaha Pin 0 +5 dBm
Korontada indhaha oo gubatay PB - + 13 dBm
Heerkulka alxanka rasaasta Tp 280 (10s) 330 (10s) ℃
Tilmaamaha Korontada / indhaha (TC = 22 ± 3 ℃)
dhimaya Calaamadaha Xaaladda Tijaabada Qiimayaasha Halbeegga Unit
Xadka Wavelength λ - 1000 ilaa 1650 nm
Heerka Joogtada ah - - L - Band S - Kooxda CM -
Bandwidhthka Calaamadaha Yaryar f-3dB TC = 22 ± 3 ℃ 0.03 ~ 1 0.03 ~ 2.5 0.1 ~ 5 GHz
Waxqabadka Re VR =+5V, Pin =1mW λ = 1310 nm ≥ 0.85 ≥ 0.90 ≥ 0.90 A / W
λ = 1550 nm ≥ 0.90 ≥ 0.90 ≥ 0.90
Faa'iidada ishaarada RF G - 30 ± 2 20 ± 2 20 ± 2 dB
Balaadhan Flatness A TC = -40～+70 ℃ ≤ ± 1.5 ≤ ± 1.5 ≤ ± 2 dB
Wax soo saarka VSWR VSWR - 2 XNUMX 2 XNUMX ≤ ± 2.2 -
Awoodda indhaha ee saturation Ps VR = +5 V, λ = 1550 nm
AC Modulated		 +5 dBm
Qulqulka RF Awoodda Soo saarista Pbaxay - 15 dBm
Xilliga Madoobaa ID - ≤10 nA
Saamaynta Wax Soo Saarka RL - 50 Ω

● Qalloocyada Jawaabta Caadiga ah

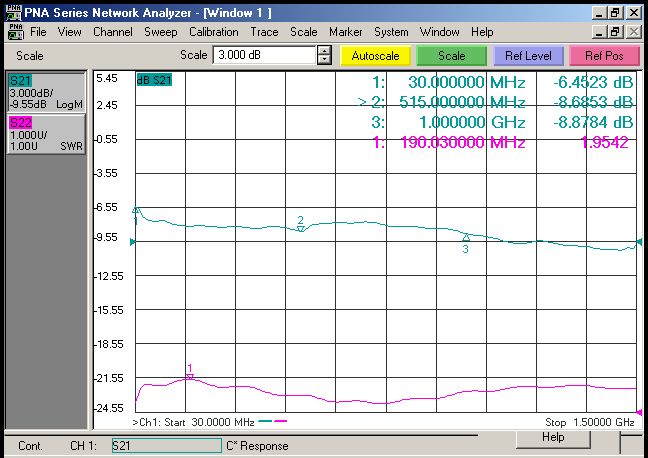

(Sawirka. 1 L- Band FCAMPD InGaAs Jawaabta Soo noqnoqda Sawir-qaade)

(Sawirka. 2 S- Band FCAMPD InGaAs Jawaabta Soo noqnoqda Sawir-qaade)

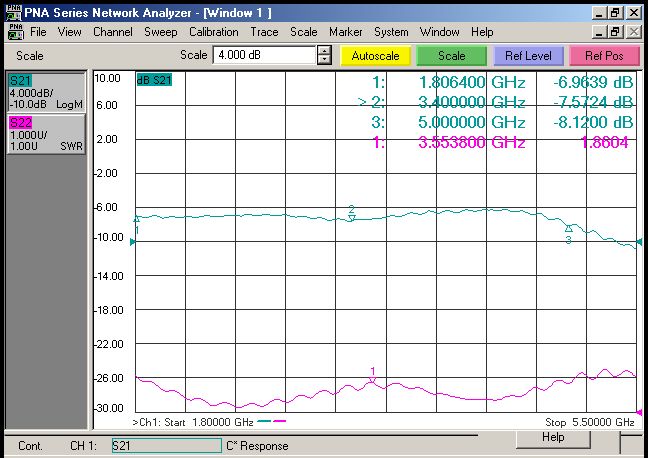

(Sawirka. 3 C- Kooxda FCAMPD InGaAs Jawaabta Soo noqnoqda Sawir-qaade)

● Cabbirka iyo biinanka ( Cutub: mm[inch])

Xidhiidhiyaha indhaha: FC (waji-xidhiidh) xidhiidhiyaha fiber-optic

Xidhiidhiyaha RF: SMA

● Dalbashada Macluumaadka

Xaashida 1:

Code Analog Bandwidth
L 0.03 ilaa 1 GHz
S 0.03 ilaa 2.5 GHz
CM Habaynta (≦ 5GHz)

● taxaddarrada

  • Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.

  • Interface RF iyo interface indhaha waa in lagu daboolaa daboolka boodhka marka aan la isticmaalin.

  • Ilaalinta ESD ee ku haboon ayaa looga baahan yahay kaydinta, gaadiidka iyo isticmaalka .
