LK-NY15D 1550nm Microwave DFB Laser Module
- Awooda Waxka bedelka Tooska ah
- Dhaqdhaqaaq sare-Range
- 18 GHz bandwidth
- Xadka hoose ee hadda
- Awood wax soo saar sare
- 7pin xirmo balanbaalis ah oo leh xiriiriyaha SMA
- Heerkulka kiiska shaqada: -40 ilaa 70 ℃
- Isku halaynta kor loo qaaday
Product Description
Laysarka LK-NY15D waa wax qabad sare, toos loo habeeyey jawaab celin Qaybsan (DFB) laser loogu talagalay isgaarsiinta toosan ee fiber optic-ga. Waxay u adeegtaa beddelka sare ee nidaamyada fiilooyinka coaxial marka la gudbinayo calaamadaha 12 GHz ama 18 GHz.
LK-NY15D waxay wanaajisaa isku halaynta shabakadaha isgaadhsiinta microwave iyadoo u gudbinaysa calaamadaha RF qaabkooda saafiga ah, taas oo iyana si muuqata u wanaajisa tayada calaamadaha guud ahaan noocyada codsiyada sida fogeynta anteenada, telemetry, wakhtiga iyo qaybinta calaamadaha tixraaca, iyo sidoo kale cabirka iyo daahitaanka khadadka.
Taxanaha laysarka waxa ku jira go'dooye isku dhafan oo indhaha ah, qaboojiye heerkulbeeg (TEC), thermistor, chip laser diode chip, iyo kormeeraha photodiode, kuwaas oo dhamaantood lagu shaabadeeyey xidhmo 7-pin ah oo balanbaalis ah oo adag si loo hubiyo ilaalinta hermetic iyo waxqabadka ugu fiican.
sooc Technical
| Qiimeynta Ugu Sareysa | ||||
|---|---|---|---|---|
| dhimaya | calaamad | Min. | Max. | Unit |
| Laser diode horay u socda | If | - | 120 | mA |
| laser diode danab gadaal | V | - | 1 | V |
| Awooda hore | Pf | - | 20 | dBm |
| PD danab gadaal | V | - | 15 | V |
| Waqtiga xaadirka ah (PD) | Im | - | 2 | mA |
| Heerkulka hawlgalka | To | -40 | + 70 | ° C |
| heerkulka kaydinta | Ts | -55 | + 85 | ° C |
| Kaydinta qoyaanka qaraabo | Sr | - | 85 | % |
| Caleemaha indhaha iyo korantada (Tc=25°C) | |||||||
|---|---|---|---|---|---|---|---|
| dhimaya | calaamad | Xaaladda Tijaabada | Min | nooca | Max | Halbeegyada | note |
| Milanello | λ | IF = AnigaOP, T = TOP | - | 1550 | - | nm | |
| Frequency | - | X Ikhtiyaarka | 0.1 | - | 12 | GHz | - |
| Ku doorasho | 1 | - | 18 | ||||
| Awood wax soo saarka indhaha | P | IF=Iop | - | 10 | - | mW | 1 |
| Heerarka hadda jira | Ith | λ=1550nm | - | - | 10 | mA | - |
| Howlgalka hadda | Iop | λ=1550nm | - | 55 | 100 | mA | - |
| Koronto dhalinta | Vop | λ=1550nm | - | 1.5 | 2.5 | V | - |
| Waxtarka jiirada | SE | - | 0.2 | - | - | W / A | - |
| Saamiga xakamaynta hab-dhinac | SMSR | λ=1550nm, IF=Iop | 30 | - | - | dB | - |
| Qaylada Xoogan Rative | RIN | - | -150 | -130 | dB / Hz | - | |
| Bandballth (-3dB, I=60mA) | S21 | X Ikhtiyaarka | - | 12 | - | GHz | - |
| Ku doorasho | - | 18 | - | ||||
| Khasaare soo laabashada | VSWR | X Ikhtiyaarka | - | - | 2 | dB | - |
| Ku doorasho | - | - | 2.2 | ||||
| Gelida 1 dB Cadaadiska | - | 15 | - | - | dBm | - | |
| Iska caabinta Thermistor | Rth | @25°C | - | 10 | - | Kohm | - |
| TEC hadda | It | - | - | - | 1.2 | A | 2 |
| Voltage TEC | Vt | - | - | 2.5 | V | 2 | |
| Awoodda (PD) | Ct | - | - | 20 | pF | - | |
| La socodka hadda | Im | - | 0.10 | - | 2.0 | mA | - |
| Hadda mugdiga ah (PD) | Id | - | - | 50 | nA | - | |
Notes:Dhammaan jajabyada laysarka waxay ka yimaadaan waferrada la shahaadeeyay iyadoo la adeegsanayo qalab badan oo wakiil ah oo ay tahay inay gaaraan wax-soosaar la aqbali karo oo gubasho ah.
1. Heerkulka Laser wuxuu dhigay 25 ℃, eexda hadda waa 55mA
2. Heerkulka kiiska hawlgalka -40 ~ 70 ℃
● Xogta Caadiga ah
(λ=1550nm, TC =25 ℃)

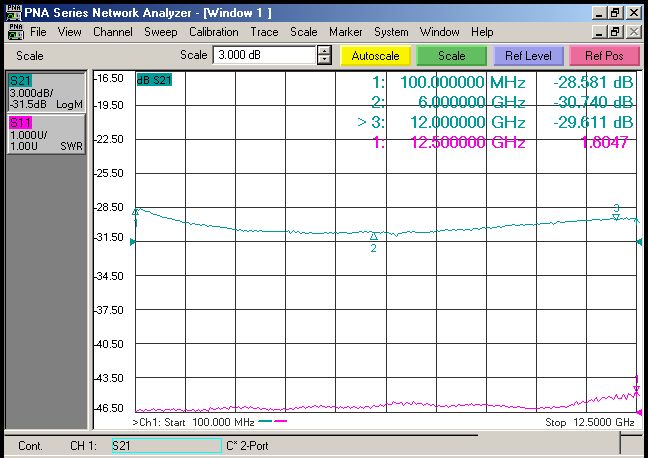

(Sawirka 1 X- Xogta S11 iyo S22)

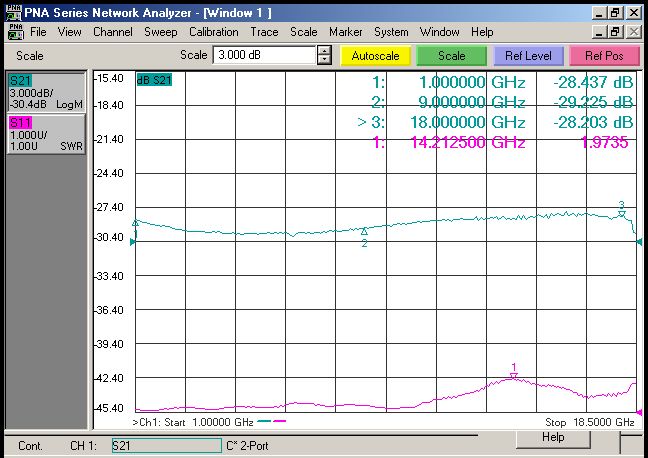

(Jaantuska. 2 Ku-band S11 iyo S22 xogta)
● Nidaamka korantada
| hogaanka# | function |
| 1 | Heer-kulka |
| 2 | Heer-kulka |
| 3 | LD-(eex) |
| 4 | PD+ |
| 5 | PD- |
| 6 | Qaboojiye+ |
| 7 | qaboojiye- |
| 8 | LD-(RF) |
| 9 | Ground |

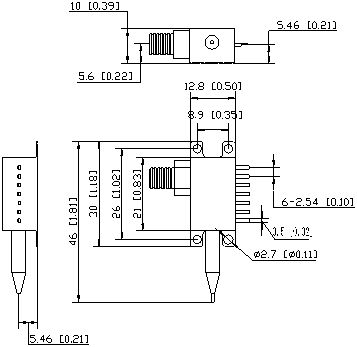

● Sawirro qeexan (Cutub: mm[inch])
Xidhiidhiyaha RF: SMA
● Dalbashada Macluumaadka
Xaashida 1:
| Code | Dhererka Mawjada |
| 15 | 1550nm 7PIN xidhmo balanbaalis |
Xaashida 2:
| Code | Analog Bandwidth |
| X | 0.1 ilaa 12 GHz |
| Ku | 1 ～ 18 GHz |
Xaashida 3:
| Code | isku xira Type | tacliiq |
| A | FC/APC | Hal-hab 9/125 μm fiber pigtail, 0.9mm, dhererka 1m |
| S | SC / APC | |
| N | Xiriiriye ma jiro |
● taxaddarrada
Fiber-ku-laabashada oo aan ka yarayn 20 mm si looga fogaado waxyeellada fiber-ka.
Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.
Ilaalinta ESD ee ku habboon ayaa looga baahan yahay kaydinta, gaadiidka iyo isticmaalka.
Codsiyada
Xidhiidhka Xogta Xawaaraha Sare leh
Anteenada fogaynta
Shabakadaha gacanta iyo PCS
Analog RF isku xirka gudbinta
Isgaarsiinta Ciidamada
Dabagalka, Telemetry, iyo Xakamaynta
Nidaamyada Telemetry
Ciidamada iyo Nidaamyada Difaaca
