LK-HSPD Xawaaraha Sare ee GaAs Sawirqaade

  • Bandwidth ballaaran, Xawaaraha Sare
  • Eexda lagu daray
  • DC-ku-xidhay
  • Hermetically Seed, Xiriiriyaha SMA
  • Madow Hoose, Saamiga signal-ilaa-sanqa sare.
  • Qodobka Foomka Yar.
WEYDIISASHADA

+ 86 29 88244373

Product Description

Module ogaanshaha xawaaraha sare ee LK-HSPD waxa loo habeeyey si uu u daboolo isticmaalka dhijitaalka ah iyo kuwa analooga ah labadaba. Qalabkani waxa uu ku qalabaysan yahay InGaAs PIN photodiode kaas oo leh mowjadda dhererka jawaabta oo u dhaxaysa 1250 ilaa 1650 nm, oo ay la socoto qalabka elegtarooniga ah ee muhiimka ah.

LK-HSPD waxa ay awood u leedahay in ay gudbiso xadhkaha xadhkaha goostay ee 8 GHz, 12 GHz, 18 GHz, 22 GHz, iyo 30 GHz. Hawlgalka cutubku wuxuu ku salaysan yahay koronto ah +3.3V ama +5V, iyadoo ku xiran nooca gaarka ah. Waxaa loogu talagalay in lagu shaqeeyo fibre-hal-qaab caadi ah oo ah 9/125μm. Wax soo saarka RF waxa uu leeyahay isku xidhaha ku habboon SMA ama isku xidhaha 2.92 mm, oo labaduba leh 50 ohm impedance match.

LK-HSPD si hermetically ah ayaa loo shaabadeeyey si looga ilaaliyo arrimaha deegaanka, si kor loogu qaado adkaysigeeda iyo isku halaynta. Waxay ku faantaa naqshad khafiif ah, oo leh miisaan ka yar 15 garaam, taas oo ku habboon codsiyada halka miisaanku yahay arrin muhiim ah. Module-ka waxa loo cadeyay si waafaqsan Xadaynta Walxaha Khatarta ah (RoHS) Awaamiirta 2.0, iyada oo xaqiijinaysa u hogaansanaantiisa sharciyada adag ee deegaanka iyo badbaadada.

sooc Technical
Qiimaynta Caadiga ah & Ugu Sarreysa
dhimaya Calaamadda. nooca Rating Unit
Xaddiga heerkulka kaydinta TSTG -45 ～ +85 -55 ～ +100 ℃
Kala duwanaanshaha heerkulka kiiska shaqaynaya TC 25 -40 ～ +85 ℃
Eexda Voltage VR 3.3 ama 5 2.8 ilaa 5.25 V
Awood wax-gelinta indhaha Pin +3 + 10 dBm
Korontada indhaha oo gubatay PB - + 13 dBm
Heerkulka alxanka rasaasta Tp 280 (10s) 330 (10s) ℃
Tilmaamaha Korontada / indhaha (TC = 22 ± 3 ℃)
dhimaya Calaamadaha Xaaladda Tijaabada Qiimayaasha Halbeegga Unit
Xadka Wavelength λ - 1000 ~ 1650 nm
Heerka Joogtada ah - - C-Band X-Band Ku-Band Ku+-Band K+-Band PLUS -
Bandwidhthka Calaamadaha Yaryar f-3dB TC= 22 ± 3 ℃ 0.1 ~ 8 0.3 ~ 12 0.8 ~ 18 2 ~ 22 2 ~ 30 0.3 ~ 18 GHz
Waxqabadka Re VR , Pin=1mW λ = 1310nm ≥ 0.85 ≥ 0.85 ≥ 0.8 ≥ 0.75 ≥ 0.75 ≥ 0.75 A / W
λ = 1550nm ≥ 0.95 ≥ 0.95 ≥ 0.75 ≥ 0.70 ≥ 0.65 ≥ 0.70
Balaadhan Flatness A TC = -40～+85 ℃ ≤ ± 1.5 ≤ ± 1.5 ≤ ± 1.5 ≤ ± 2 ≤ ± 2 ≤ ± 1.5 dB
Wax soo saarka VSWR VSWR - 2 XNUMX 2 XNUMX 2.5 XNUMX 2.5 XNUMX 2.5 XNUMX 2.5 XNUMX -
Eexda Voltage VR - + 3.3 + 3.3 + 3.3 + 3.3 +5 +5 V
Xidhiidhiyaha RF - - SMA SMA SMA 2.92mm 2.92mm SMA -
Awoodda indhaha ee saturation Ps VR , λ = 1550nm
AC Modulated		 +7 +7 +7 +7 +7 + 10 dBm
Xilliga Madoobaa Id VR ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 nA
Qulqulka RF Awoodda Soo saarista Fudud - -10 dBm
Saamaynta Wax Soo Saarka RL - 50 Ω

● Qalloocyada Jawaabta Caadiga ah

(VR, λ=1550nm, TC =25 ºC, pin=0dBm)

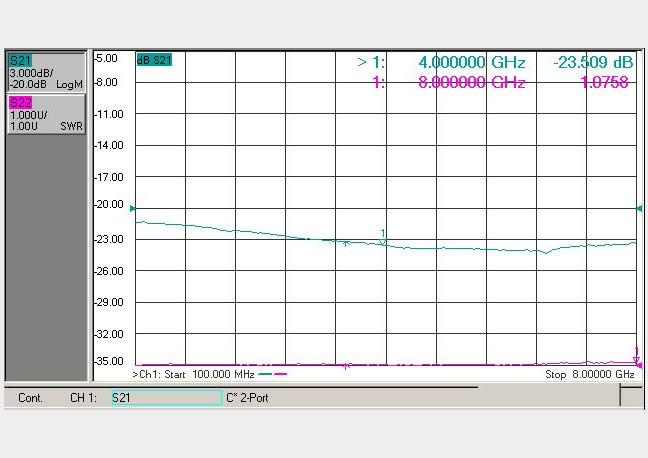

(Jaantuska.1 C-Band Sawir-qaade Jawaabta Joogtada ah)

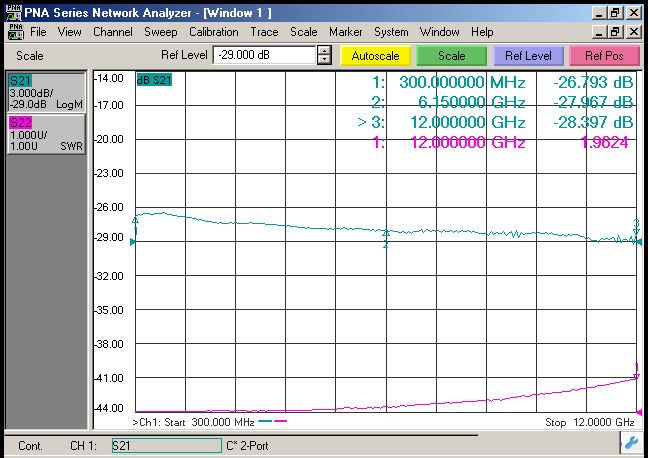

(Jaantuska.2 X-Band Sawir-qaade Jawaabta Joogtada ah)

(Jaantuska.3 Ku-Band Jawaabta Soo noqnoqda Sawir-qaade)

(Jaantuska.4 K+ -Jawaabta Soo noqnoqota Sawir-qaade Koox)

● Cabbirka iyo biinanka (Cutub:mm[inji])

Xidhiidhiyaha RF: SMA ama 2.92mm

● Dalbashada Macluumaadka

Xaashida 1:

Code  Analog Bandwidth
C 0.1 ilaa 8GHz
X 0.3 ilaa 12 GHz
Ku 0.8 ilaa 18 GHz
Ku+ 2 ～ 22 GHz
K+ 2 ～ 30 GHz
Plus 0.3 ilaa 18 GHz

Xaashida 2:

Code isku xira Type tacliiq
N Xiriiriye ma jiro Hal-hab 9/125 μm fiber pigtail
A FC / APC
P FC/PC

● taxaddarrada

  • Fiber-ku-laabashada oo aan ka yarayn 20mm si looga fogaado waxyeellada fiber-ka.

  • Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.

  • Ilaalinta ESD ee ku haboon ayaa looga baahan yahay kaydinta, gaadiidka iyo isticmaalka .

Dhammaan sawir-qaadayaashayada caadiga ah waxaa loo habeyn karaa qaybo!

Codsiyada

  • Isgaarsiinta indhaha-fiber

  • Nidaaminta Macluumaadka Raadaarka

  • Dagaal Elektaroonig ah

  • Tijaabada Calaamadaha Xawaaraha Sarreya iyo Cabbirka

  • Amniga iyo Kormeerka
