Sawir-qaade LK-FCPD InGaAs
- Ballaadh ballaadhan
- Eexda lagu daray
- Isku-dhafka O/E Hybrid
- Qaylo hoose, Broadband
- Xiriiriyaha SMA
- Madow Hoose, Saamiga signal-ilaa-sanqa sare.
- Qodobka Foomka Yar.
Product Description
Fiber-Coupled Photodetector (FCPD) waa nidaam isku-dhafan optoelectronic horumarsan, oo ku jira sawir-qaade Indium Gallium Arsenide (InGaAs) oo ballaadhan. InGaAs PIN photodiode waxaa loogu talagalay inuu ka jawaabo hirarka dhererka u dhexeeya 1000 ilaa 1650 nanometer. LK-FCPD waxay awood u leedahay inay bixiso xadhkaha xadhkaha goosadka ah ee 1 gigahertz, 2.5 gigahertz, waxayna bixisaa xalal la beddeli karo oo leh awoodda xawaaraha ugu badan ee 8 gigahertz. Qalabka waxa ku shaqeeya koronto sahayda +5-volt ah waxana uu ku qalabaysan yahay isku xidhaha fibre optic ee caadiga ah ee FC (wejiga la xidhiidha) Soo saarida Soo noqnoqoshada Raadiyaha (RF) waxaa lagu fududeeyaa isku xiraha ku habboon SMA, kaas oo u dhigma 50 ohms.
LK-FCPD waa mid fudud, in ka yar 15 garaam, taas oo faa'iido u leh codsiyada u baahan cuf yar. Qalabku wuxuu u hoggaansamaa Xaddidaadda Walxaha Khatarta ah (RoHS) Awaamiirta 2.0, iyadoo la hubinayo inay la kulanto xeerarka adag ee deegaanka iyo badbaadada.
sooc Technical
| Qiimaynta Caadiga ah & Ugu Sarreysa | ||||
|---|---|---|---|---|
| dhimaya | Calaamadda. | nooca | Rating | Unit |
| Xaddiga heerkulka kaydinta | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Kala duwanaanshaha heerkulka kiiska shaqaynaya | TC | 25 | -40 ～ +70 | ℃ |
| Eexda Voltage | VR | +5 | +4.75 ～ +5.25 | V |
| Awood wax-gelinta indhaha | Pin | 0 | +5 | dBm |
| Korontada indhaha oo gubatay | PB | - | + 13 | dBm |
| Heerkulka alxanka rasaasta | Tp | 280 (10s) | 330 (10s) | ℃ |
| Tilmaamaha Korontada / indhaha (TC = 22 ± 3 ℃) | |||||||
|---|---|---|---|---|---|---|---|
| dhimaya | Calaamadaha | Xaaladda Tijaabada | Qiimayaasha Halbeegga | Unit | |||
| Xadka Wavelength | λ | - | 1000 ilaa 1650 | nm | |||
| Heerka Joogtada ah | - | - | L Band | S Band | CM | - | |
| Bandwidhthka Calaamadaha Yaryar | f-3dB | TC = 22 ± 3 ℃ | 0.03 ~ 1 | 0.03 ~ 2.5 | 0.1 ~ 8 | GHz | |
| Waxqabadka | Re | VR =+5V, Pin =1mW | λ = 1310 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | A / W |
| λ = 1550 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | ||||
| Balaadhan Flatness | A | TC = -40～+70 ℃ | ≤ ± 1.5 | ≤ ± 2 | dB | ||
| Wax soo saarka VSWR | VSWR | - | 2 XNUMX | 2.2 XNUMX | - | ||
| Awoodda indhaha ee saturation | Ps | VR = +5 V, λ = 1550 nm AC Modulated |
+5 | dBm | |||
| Qulqulka RF Awoodda Soo saarista | Pbaxay | - | -10 | dBm | |||
| Xilliga Madoobaa | ID | - | ≤10 | nA | |||
| Saamaynta Wax Soo Saarka | RL | - | 50 | Ω | |||
● Qalloocyada Jawaabta Caadiga ah

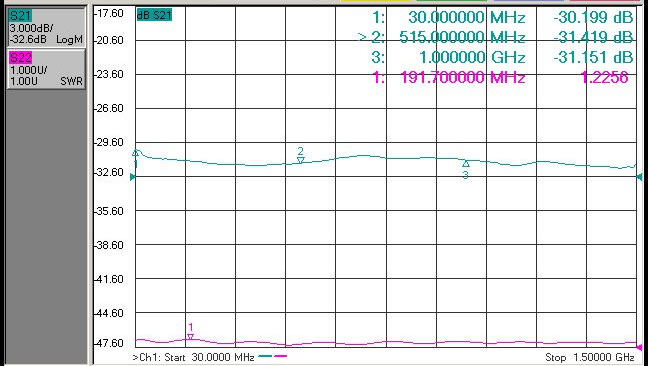

Sawirka 1 L- Band FCPD InGaAs Jawaabta Soo noqnoqda Sawir-qaade
Sawirka 2 S- Kooxda FCPD InGaAs Jawaabta Soo noqnoqda Sawir-qaade
Sawirka 3 C- Kooxda FCPD InGaAs Jawaabta Soo noqnoqda Sawir-qaade

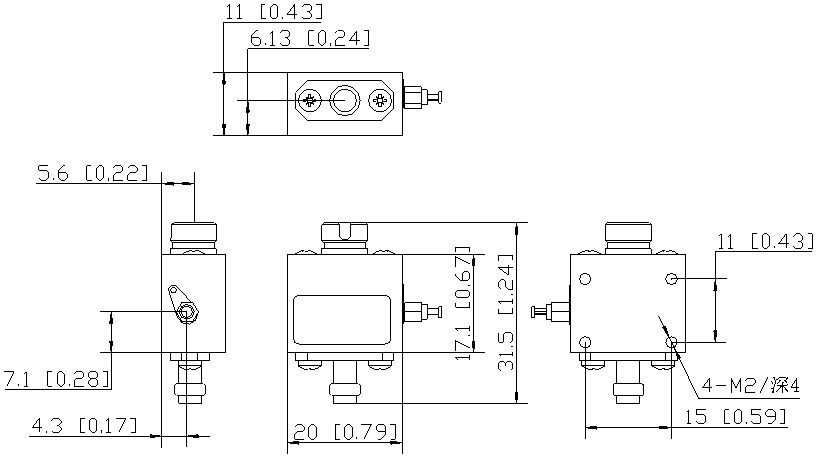

●Cabbirka iyo biinanka ( Cutub: mm[inch])
Xidhiidhiyaha indhaha: FC (waji-xidhiidh) xidhiidhiyaha fiber-optic
Xidhiidhiyaha RF: SMA
●dalbashada Information
Xaashida 1:
| Code | Analog Bandwidth |
| L | 0.03 ilaa 1 GHz |
| S | 0.03 ilaa 2.5 GHz |
| CM | Habaynta (≦ 8GHz) |
● taxaddarrada
Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.
Interface RF iyo interface indhaha waa in lagu daboolaa daboolka boodhka marka aan la isticmaalin.
Ilaalinta ESD ee ku habboon ayaa looga baahan yahay kaydinta, gaadiidka
Dhammaan sawir-qaadayaashayada caadiga ah waxaa loo habeyn karaa qaybo!
Codsiyada
Nidaaminta Macluumaadka Raadaarka
Dagaal Elektaroonig ah
Cabbirka Anteenada
Isgaarsiinta Fiber Optic
Amniga iyo Kormeerka
