LK-AMPD-S Xawaaraha Sare ee La Kordhiyay Microwave InGaAs Sawir-qaade
- Xawaaraha sare, Bandwidth ballaaran
- Eexda lagu daray
- Isku-dhafka O/E Hybrid
- Faa'iido Sarreysa, Qaylo Yar, Broadband
- Hermetically Seed, Xiriiriyaha SMA
- Madow Hoose, Saamiga signal-ilaa-sanqa sare.
- Qodobka Foomka Yar.
Product Description
LK-AMPD-S waa isku-dhafan ah InGaAs photodiode iyo cod-weyneeye cod-hooseeya, oo loogu talagalay jawaab celin ballaaran oo muuqaal ah oo ka socota 1000 ilaa 1650nm oo bixisa 15 dB RF faa'iido. Waxay bixisaa waxqabad xawaare sare leh oo leh xajmiyada 12GHz iyo 18GHz, waxaana ku shaqeeya sahayda +5V.
Qalabkani waxa uu la jaan qaadaya heerka hal-hab ee 9/125μm fiber waxana uu leeyahay xidhiidhiyaha SMA oo leh 50 ohm impedance match.
LK-AMPD-S hermetically ayaa loo shaabadeeyey ilaalinta deegaanka waxayna leedahay nashqad khafiif ah, oo cufkeedu ka yar yahay 23 garaam. Waxay u hoggaansantaa Xaddidaadda Walxaha Khatarta ah (RoHS) Awaamiirta 2.0, hubinta sii jirista deegaanka iyo u hoggaansanaanta heerarka badbaadada adag.
sooc Technical
| Qiimaynta Caadiga ah & Ugu Sarreysa | ||||
|---|---|---|---|---|
| dhimaya | Calaamadda. | nooca | Rating | Unit |
| Xaddiga heerkulka kaydinta | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Kala duwanaanshaha heerkulka kiiska shaqaynaya | TC | 25 | -40 ～ +85 | ℃ |
| Eexda Voltage | VR | +5 | +5 ～ +9 | V |
| Awood wax-gelinta indhaha | Pin | 0 | + 10 | dBm |
| Korontada indhaha oo gubatay | PB | - | + 13 | dBm |
| Heerkulka alxanka rasaasta | Tp | 280 (10s) | 330 (10s) | ℃ |
| Tilmaamaha Korontada / indhaha (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| dhimaya | Calaamadaha | Xaaladda Tijaabada | Qiimayaasha Halbeegga | Unit | ||
| Xadka Wavelength | λ | - | 1000 ilaa 1650 | nm | ||
| Heerka Joogtada ah | - | - | X - Band | Ku - Band | - | |
| Bandwidhthka Calaamadaha Yaryar | f-3dB | TC = 22 ± 3 ℃ | 0.3 ilaa 12 | 0.3 ilaa 19.5 | GHz | |
| Waxqabadka | Re | VR =+5V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Balaadhan Flatness | A | TC = -45～+85 ℃ | ≤ ± 2 | dB | ||
| Awoodda indhaha ee saturation | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| Faa'iidada ishaarada RF (Caadi) | G | - | 15 ± 1 | dB | ||
| Qulqulka RF Awoodda Soo saarista | Pbaxay | - | +3 | dBm | ||
| Wax soo saarka VSWR | VSWR | - | 2 XNUMX | - | ||
| Saamaynta Wax Soo Saarka | RL | - | 50 | Ω | ||
● Qalloocyada Jawaabta Caadiga ah

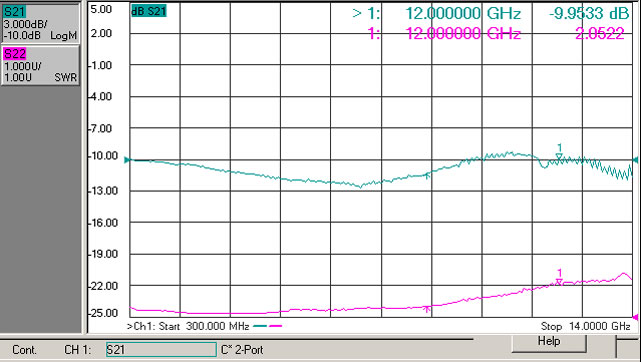

(Sawirka. 1 X - Jawaabta Soo noqnoqda Sawir-qaade Kooxeed)
(Sawirka. 2 Ku - Jawaabta Soo noqnoqoshada Sawir-qaade ee Band)
●Cabbirka iyo biinanka ( Unugga: mm[ inch] )
Xidhiidhiyaha RF: SMA
●dalbashada Information
Xaashida 1:
| Code | Faa'iidada ishaarada RF | tacliiq |
| S | 15 dB | Caadiga ah & Inta jeer ee Xarunta |
Xaashida 2:
| Code | Analog Bandwidth |
| X | 0.3 ～ 12 GHz |
| Ku | 0.8 ilaa 19.5 GHz |
Xaashida 3:
| Code | isku xira Type | tacliiq |
| N | Xiriiriye ma jiro | Hal-hab 9/125 μm fiber pigtail |
| A | FC/APC | |
| P | FC / PC |
● taxaddarrada
Fiber-ku-laabashada oo aan ka yarayn 20 mm si looga fogaado waxyeellada fiber-ka.
Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.
Ilaalinta ESD ee ku haboon ayaa looga baahan yahay kaydinta, gaadiidka iyo isticmaalka .
Dhammaan sawir-qaadayaashayada caadiga ah waxaa loo habeyn karaa qaybo!
Codsiyada
Nidaaminta Macluumaadka Raadaarka
Dagaal Elektaroonig ah
Cabbirka Anteenada
Isgaarsiinta Fiber Optic
Amniga iyo Kormeerka
