LK-NY55T Awood Sare DWDM Gudbiyaha
- Ilaa 100mw koronto sare leh
- Qaylada Qaraabo Hoose (RIN)
- Si heer sare ah loo isku daray, baakad module ah
- halaynta Sare
- Mawjada dhererka ITU ee ikhtiyaarka ah
Product Description
Gudbiyaha LK-NY55T waxaa ugu horrayn lagu dhisay awood sare oo jawaab celin qaybin ah (DFB) lesar, oo ay ku buuxisay si toos ah wareegga kontoroolka korantada, wareegga heerkulka tooska ah, wareegga beddelka korantada-dejinta, kormeerka iyo wareegga tilmaanta. Qalabka waxaa loogu talagalay inuu ku fido miiska ITU kanaalka mawjadaha dhererka dhererka cufan ee Qaybta Isku-dhufashada (DWDM), iyadoo hubinaysa waafaqid ballaadhan.
Waxay gaari kartaa awoodda wax-soo-saarka ugu badan ee 100mW iyadoo la ilaalinayo qaylada hoose ee qaraabada, moduleka wuxuu kaloo soo bandhigayaa xasillooni heer sare ah oo ku saabsan hirarka dhererkiisa, cabbirka muhiimka ah ee isgaarsiinta indhaha ee la isku halleyn karo. Waxaa intaa dheer, Gudbiyaha LK-NY55T wuxuu ku qalabaysan yahay shaqo tilmaame ah oo calaamad u ah shaqada caadiga ah ee korontada iyo soo saarista tamarta indhaha.
sooc Technical
Qiimeynta Ugu Sareysa
| dhimaya | calaamad | Min. | Nooc | Max. | Unit |
| heerkulka kaydinta | TSTG | -40 | + 25 | + 85 | ℃ |
| Heerkulka hawlgalka | TC | -20 | + 25 | + 70 | ℃ |
| danab | Vin | +7 | + 12 | + 36 | V |
Caleemaha indhaha iyo korantada (TC = 22± 3℃)
| dhimaya | calaamad | Xaaladda | Min. | Nooc | Max. | Unit |
| Milanello | λ | - | - | C Band | - | nm |
| Awood wax soo saar iftiin leh | P | - | 40 | - | 100 | mW |
| Qaybta Xannibaadda Ugannimada | rhine | - | - | -163 | -160 | dBc/Hz |
| Saamiga xakamaynta hab-dhinac | SMSR | - | 30 | - | - | dB |
| Mawjada dhererka ayaa dul wareegaysa TC Range | ∆λTOP | T = TOP | - | - | 50 | pm |
Korontada (TC = 22± 3℃)
| dhimaya | Min. | Nooc | Max. | Unit |
| danab | +7 | + 12 | + 36 | V |
| hadda Jira(1) | 0.3 | 0.6 | 1 | A |
(1) Xaaladda tijaabada: Vin=+12V.

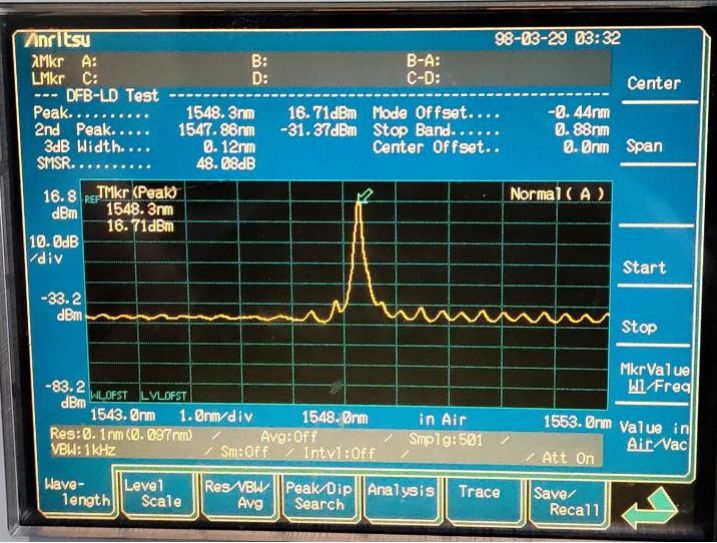

● Spectrogram-ga caadiga ah
Jaantuska 1 LK-NY55T Gudbiye Spectrogram Caadiga ah

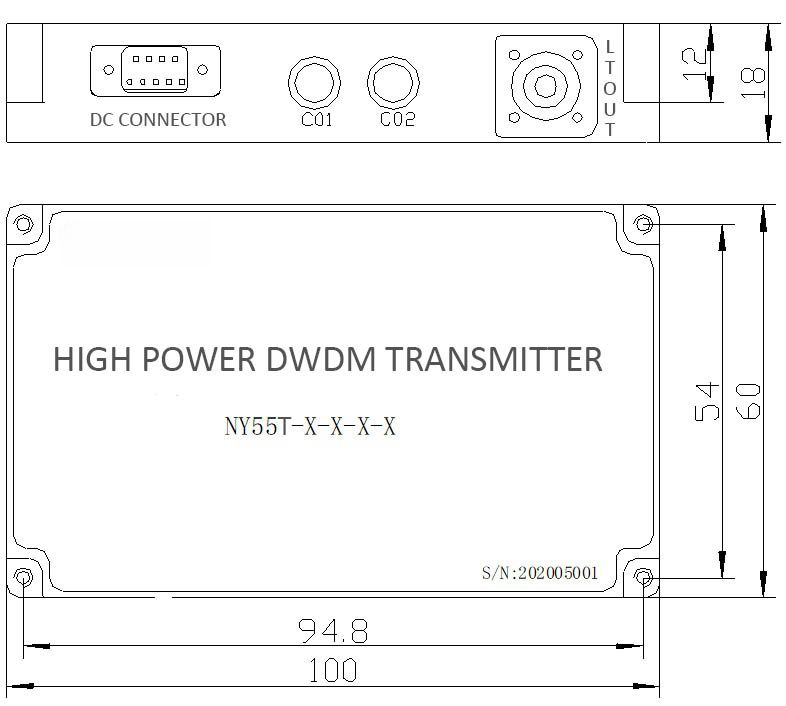

● Unugga cabbirka:mm[inch]
Jaantuska 2 LK-NY55T Cabbirka Gudbinta
Xidhiidhiyaha RF: SMA
Xidhiidhiyaha Korontada:J30J-9-ZKP
● Pin of Power Supply
| dhimaya | Description | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| danab | khamriga | NC | GND | NC | |||||
● Macluumaadka Dalabka
Xaashida 1:
| Code | Awood indhaha |
| 040 | 40mW |
| 050 | 50mW |
| 063 | 63mW |
| 100 | 100mW |
Xaashida 2:
| Code | Milanello |
| 1 | 1550nm |
| 2 | La habeeyey (ITU) |
Xaashida 3:
| Code | Nooc Fiber |
| PM1 | Panda fiber |
| PM2 | Fiber Elliptical |
Xaashida 4:
| Code | Xidhiidhiyaha indhaha |
| CM | kartoo |
| A | FC / APC |
Codsiyada
Isgaarsiinta Fiber optic
Dareenka Fiber optic
Nidaamka DWDM
Isgaadhsiinta indhaha ee bannaan
