Taxanaha LK-NYCMT UWB Gudbiye Toos loo Habeeyay
- Xajmiga aadka u ballaadhan (oo ka wanaagsan 18GHz)
- CWDM
- Dhaqdhaqaaq sare-Range
- Awood wax soo saar sare
- RIN hoose
- Heerkulka kiiska shaqada: (-40℃～70℃)
Product Description
Gudbiyaha LK-NYCMT waxaa ugu horrayn lagu dhisay xawaarihiisa sare si toos ah loo habeeyey jawaab celin Qaybsan (DFB), leysarka, wareegga korantada ee tooska ah, wareegga heerkulka tooska ah, wareegga beddelka korantada-dejinta, kormeerka iyo wareegga tilmaanta. Gudbiyahani wuxuu bixiyaa xulashada mowjadaha dhererka (1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm) waxayna ku faantaa xawaaladaha wax-ka-beddelka ah ee ka sarreeya 18GHz, oo leh awood wax soo saar oo gaari karta 10mW.
Gudbiyaha LK-NYCMT wuxuu ku shaqeeyaa hal koronto oo togan waxaana loo naqshadeeyay inuu si la isku halleyn karo ugu shaqeeyo inta u dhexeysa +7V ilaa +36V. Waxay ku faantaa dhowr astaamood oo faa'iido leh, oo ay ku jiraan qaylada xoojinta qaraabo hoose (RIN), xasillooni heer sare ah oo xagga hirarka dhererka, iyo awoodda wax soo saarka sare, taas oo si wadajir ah gacan uga geysata waxqabadkeeda sare ee hababka isgaarsiinta indhaha.
Intaa waxaa dheer, Gudbiyaha LK-NYCMT wuxuu ku qalabaysan yahay shaqo tilmaame ah oo siinaya jawaab celin cad oo ku saabsan heerka sahayda korantada iyo soosaarka korantada indhaha, iyadoo la hubinayo in cabirrada hawlgalka nidaamku ay ku jiraan xadka la rabo, astaantan ayaa muhiim u ah ilaalinta sharafta nidaamka iyo fududaynta cilad degdeg ah.
sooc Technical
Qiimeynta Ugu Sareysa
| dhimaya | calaamad | Min. | Nooc | Max. | Unit |
| heerkulka kaydinta | TSTG | -55 | + 25 | + 85 | ℃ |
| Heerkulka hawlgalka | TC | -40 | + 25 | + 70 | ℃ |
| Awood gelinta RF1 | Pin | - | + 10 | + 20 | dBm |
| danab | Vin | +7 | + 12 | + 36 | V |
(1) Mowjad joogto ah (CW) qaab shaqaynaysa.
Caleemaha indhaha iyo korantada (TC = 22± 3℃)
| dhimaya | calaamad | Xaaladda | Min. | Nooc | Max. | Unit |
| Milanello | λ | - | 1370 | CWDM | 1390 | nm |
| Soo noqnoqoshada (3dB) | f3dB | X band | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Awood wax soo saar iftiin leh | P | - | 5 | 10 | - | mW |
| Qaybta Xannibaadda Ugannimada | rhine | - | - | - | -155 | dBc/Hz |
| Soo celinta khasaare (VSWR) | VSWR | X band | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Gelida 1 dB Cadaadiska | - | - | + 13 | + 15 | - | dBm |
Korontada (TC = 22± 3℃)
| dhimaya | Min. | Nooc | Max. | Unit |
| danab | +7 | + 12 | + 36 | V |
| hadda Jira(2) | 0.07 | 0.1 | 1 | A |
(2) Xaaladda tijaabada: Vin=+12V.
Qalooca Jawaabta Caadiga ah
Jaantuska 1 LK-NYCMT-X Gudbiyeha Qalooca Jawaabta Caadiga ah
Jaantuska 2 LK-NYCMT-Ku Gudbiyeha Qalooca Jawaabta Caadiga ah

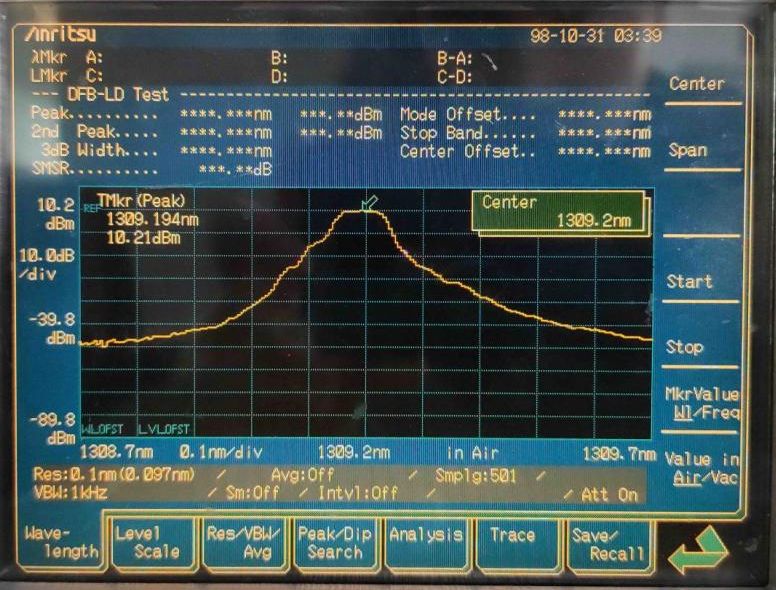

● Spectrogram-ga caadiga ah
Jaantuska 3 LK-NYCMT Gudbiye Spectrogram Caadiga ah
● Unugga cabbirka:mm[inch]
Jaantuska 4 LK-NYCMT Cabirka Gudbinta
Xidhiidhiyaha RF: SMA
Xidhiidhiyaha Korontada:J30J-9-ZKP
● Pin of Power Supply
| dhimaya | Description | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| danab | Vin | NC | GND | NC | |||||
● Dalbashada Macluumaadka
Xaashida 1:
| calaamad | Description |
| CM | Qaybta Wavelength Multiplexer 7PIN xirmo balanbaalis aan qalafsanayn CWDM |
Xaashida 2
| calaamad | Description |
| X | 0.1 ilaa 12 GHz |
| Ku | 1 ～ 18 GHz |
Xaashida 3:
| calaamad | W1 | W2 | W3 | W4 | W5 | W6 | W7 |
| Wavelength (nm) | 1270 | 1290 | 1310 | 1330 | 1350 | 1370 | 1390 |
Xaashida 4:
| calaamad | isku xira Type | Description |
| N | kartoo | kartoo |
| A | FC/APC | Heerka 9/125μm SM fiber |
| P | FC / PC | Heerka 9/125μm SM fiber |
Codsiyada
Anteenada & Raadaarka
Habka cabbiraadda elektarooniga ah
Analog RF isku xirka gudbinta
Isgaarsiinta Wireless Broadband
Saldhigga isgaarsiinta mobilada
