LK-MAMPD-4 Multichannel Xawaaraha Sare ee La Kordhiyay Sawir-qaade
- Xawaaraha sare, Bandwidth ballaaran
- Eexda lagu daray
- Isku-dhafka O/E Hybrid
- Faa'iido Sarreysa, Qaylo Yar, Broadband
- Hermetically Seed, Xiriiriyaha SMA
- Madow Hoose, Saamiga signal-ilaa-sanqa sare.
- Qodobka Foomka Yar.
Product Description
LK-MAMPD-4 waa nidaam isku-dhafan optoelectronic-ka ugu casrisan, oo isku-dhaf ah Indium Gallium Arsenide (InGaAs) photodiode oo leh cod-weyneeye cod-yar. Photodiode-kan waxa lagu gartaa dhererka hirarka jawaab-celinta spectral laga bilaabo 1000 ilaa 1650 nanometer. Cod-weyneeye-sanqadh-yar oo ku dhex jira nidaamka waxa uu bixiyaa korodhka Soo noqnoqda Raadiyaha (RF) ee 15 decibels, hubinta hufnaanta calaamadaha iyo kor u qaadida.
LK-MAMPD-4 waxay awood u leedahay inay bixiso xajmiyada 12 gigahertz iyo 18 gigahertz, iyada oo u adeegaysa isgaarsiin xawaare sare leh oo kala duwan iyo shuruudaha ogaanshaha. Module-ka waxaa loogu talagalay in uu ku shaqeeyo koronto sahayda +5-volt ah, kaas oo caadi u ah habab badan oo elegtaroonig ah. Waxay la jaan qaadaysaa hal-habka caadiga ah ee 9/125-micrometer fiber optics, hubinta is dhexgalka aan kala go 'lahayn ee shabakadaha fiber optic-ga ee jira. Dekadda wax-soo-saarka RF waxay leedahay isku-xiraha SMP-ku-xiran, kaas oo is-hortaag ku ah 50 ohms si loogu gudbiyo calaamadaha ugu wanaagsan iyo luminta calaamadda ugu yar.
LK-MAMPD-4 waxaa lagu dhisay habka xirida hermetic, kaas oo siinaya difaac adag oo ka dhan ah arrimaha deegaanka, kor u qaadaya cimrigiisa iyo isku halaynta. Waxay leedahay qaab cufan, oo miisaankeedu ka yar yahay 62 garaam, taas oo faa'iido u leh codsiyada halka miisaanka la tixgelinayo. Qaybtani waa la cadeyay in ay u hogaansanto Xadaynta Walxaha Khatarta leh (RoHS) Awaamiirta 2.0, taasoo xaqiijinaysa u hogaansanaanteeda heerarka adag ee deegaanka iyo badbaadada.
sooc Technical
| Qiimaynta Caadiga ah & Ugu Sarreysa | ||||
|---|---|---|---|---|
| dhimaya | Calaamadda. | nooca | Rating | Unit |
| Xaddiga heerkulka kaydinta | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Kala duwanaanshaha heerkulka kiiska shaqaynaya | TC | 25 | -40 ～ +85 | ℃ |
| Eexda Voltage | VR | +5 | +5 ～ +9 | V |
| Awood wax-gelinta indhaha | Pin | 0 | + 10 | dBm |
| Korontada indhaha oo gubatay | PB | - | + 13 | dBm |
| Heerkulka alxanka rasaasta | Tp | 280 (10s) | 330 (10s) | ℃ |
| Tilmaamaha Korontada / indhaha (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| dhimaya | Calaamadaha | Xaaladda Tijaabada | Qiimayaasha Halbeegga | Unit | ||
| Xadka Wavelength | λ | - | 1000 ilaa 1650 | nm | ||
| Heerka Joogtada ah | - | - | X - Band | Ku - Band | - | |
| Bandwidhthka Calaamadaha Yaryar | f-3dB | TC = 22 ± 3 ℃ | 0.3 ilaa 12 | 2 ilaa 18 | GHz | |
| Waxqabadka | Re | VR =+5V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Balaadhan Flatness | A | TC = -45～+85 ℃ | ≤ ± 2 | dB | ||
| Awoodda indhaha ee saturation | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| Faa'iidada ishaarada RF (Caadi) | G | - | 15 ± 1 | dB | ||
| Qulqulka RF Awoodda Soo saarista | Pbaxay | - | +3 | dBm | ||
| Wax soo saarka VSWR | VSWR | - | 2 XNUMX | - | ||
| Saamaynta Wax Soo Saarka | RL | - | 50 | Ω | ||
● Qalloocyada Jawaabta Caadiga ah

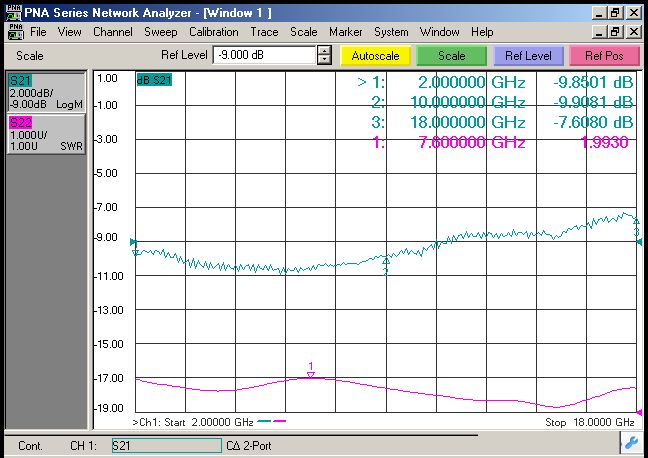

(Jaantuska 1 X - Jawaabta Soo noqnoqda Sawir-qaade)
(Jaantuska. 2 Ku - Jawaabta Soo noqnoqda Sawir-qaade)

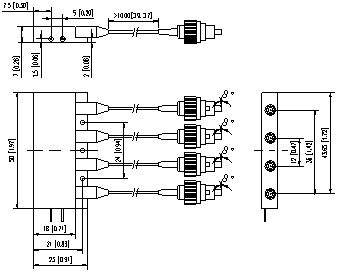

● Cabbirka iyo biinanka ( Cutub: mm[inch])
Xidhiidhiyaha RF: SMP
● Dalbashada Macluumaadka
Xaashida 1:
| Code | Analog Bandwidth |
| X | 0.2 ilaa 12 GHz |
| Ku | 2 ～ 18 GHz |
Xaashida 2:
| Code | isku xira Type | tacliiq |
| N | Xiriiriye ma jiro | Hal-hab 9/125 μm fiber pigtail |
| A | FC/APC | |
| P | FC / PC |
● taxaddarrada
Fiber-ku-laabashada oo aan ka yarayn 20 mm si looga fogaado waxyeellada fiber-ka.
Hubi in wejiga isku xidhka fiberku uu nadiif yahay ka hor inta aanad ku xidhin opto-circuit.
Ilaalinta ESD ee ku habboon ayaa looga baahan yahay kaydinta, gaadiidka iyo isticmaalka.
Dhammaan sawir-qaadayaashayada caadiga ah waxaa loo habeyn karaa qaybo!
Codsiyada
Nidaaminta Macluumaadka Raadaarka
Dagaal Elektaroonig ah
Cabbirka Anteenada
Isgaarsiinta Fiber Optic
Amniga iyo Kormeerka
