LK-DS-HES-S Radio Altimeter Simulator case standard(La habeeyey)
- Dhererka la ekaysiiyay ballaaran (0 ilaa 22000 kor);
- Qiyaasta Xakamaynta Jihaynta Sare
- Saxnaanta altimeter-ku-yeelka sare (≥1‰)
- Qaabaynta jilitaanka ikhtiyaarka ah (taageera in ka badan 210 qaabayn)
- Gacan-ku-wareejinta iyo beddelka tooska ah;
- Yaraynta mugga, iswaafajinta korantada xooggan, isku halaynta shaqada sare;
- Habka xakamaynta badan: UART, LAN, iwm.
- Tijaabooyin kala duwan oo heersare ah oo iskuxiran sida PXI, VXI, LXI.
Product Description
Taxanaha LK-DS-HES ee jilayaasha altimeter radio waxay u taagan yihiin fasal khaas ah oo ah nidaamyada dib u dhigista korantada, si hufan loo habeeyay si ay u daboolaan baahiyaha adag ee horumarinta jilitaanka altimeter raadiyaha, hagaajinta, iyo dayactirka. Nidaamyadan waxaa lagu xoojiyay tignoolajiyada casriga ah ee khadadka dib u dhigista fiber-optic, kuwaas oo u adeegsada fiilooyinka indhaha sida dhexdhexaadinta gudbinta oo ka faa'iidaysata ifafaalaha daahitaanka iftiinka si ay si sax ah ugu soo celiyaan faafinta booska ee calaamadaha microwave RF. Habkan cusubi waxa uu ogolaanayaa ku dayashada iyo qiyaasida saxda ah ee gudbinta ishaarada meelo kala duwan.
Si ka duwan hababka khadka daahitaanka ee Surface Acoustic Wave (SAW), taxanaha LK-DS-HES wuxuu soo bandhigay awoodo la xoojiyay:
Bandwidth Soo noqnoqoshada Balaadhan, Xakamaynta Jihaynta Sare, Maaraynta Calaamadaha Sadexlaha Sare ee Gaadiidka;
Astaamahan horumarsan waxay u dhigayaan taxanaha LK-DS-HES sida doorashada koowaad ee codsiyada jilbaha altimeter raadiyaha, oo dhaafa waxqabadka iyo isku halaynta nidaamyada khadka dib u dhaca SAW ee caadiga ah.
sooc Technical
Tilmaamaha Korontada/ indhaha
| dhimaya | Qiimaha halbeegga | Unit | tacliiq | ||
| Min | caadiga | Max | |||
| kala duwan Frequency | 4 | - | 4.6 | GHz | |
| Jawaabta baaxadda leh | - | ± 1.5 | ± 2 | dB | |
| Isku day dhererka | 1 | - | 22000 | m | Fududeeyso |
| Ku ekaysii saxnaanta dhererka | 0.5% | 1% | - | - | |
| Awooda waxtarka ugu badan | - | 2 | kartoo | W | Hirarka joogtada ah |
| - | 100 | kartoo | W | Hirarka garaaca | |
| Gelinta VSWR | - | 1.3 | 1.5 | - | |
| Wax soo saarka VSWR | - | 1.3 | 1.5 | - | |
| Impedance | - | 50 | - | Ω | |
| Isku day cabbirka la isku hagaajin karo | - | 80 | kartoo | dB | |
| saamiga xakamaynta tooska ah | 60 | 80 | - | dBc | |
| calaamadaha gaadiidka saddex-laaban | Maya | ||||
| Operating Range Heerkulka | -40 | - | + 70 | ℃ | Lagu habeeyey oo leh darajo tayo leh |
| Heerkulka Rang | -55 | - | + 85 | ℃ | |
| Isku day dhererka iyo heerkulka | - | - | 7 | ppm/℃ | |
| Isku day saxnaanta iyo heerkulka | - | 3 | 6 | % / ℃ | Waa la magdhabi karaa |

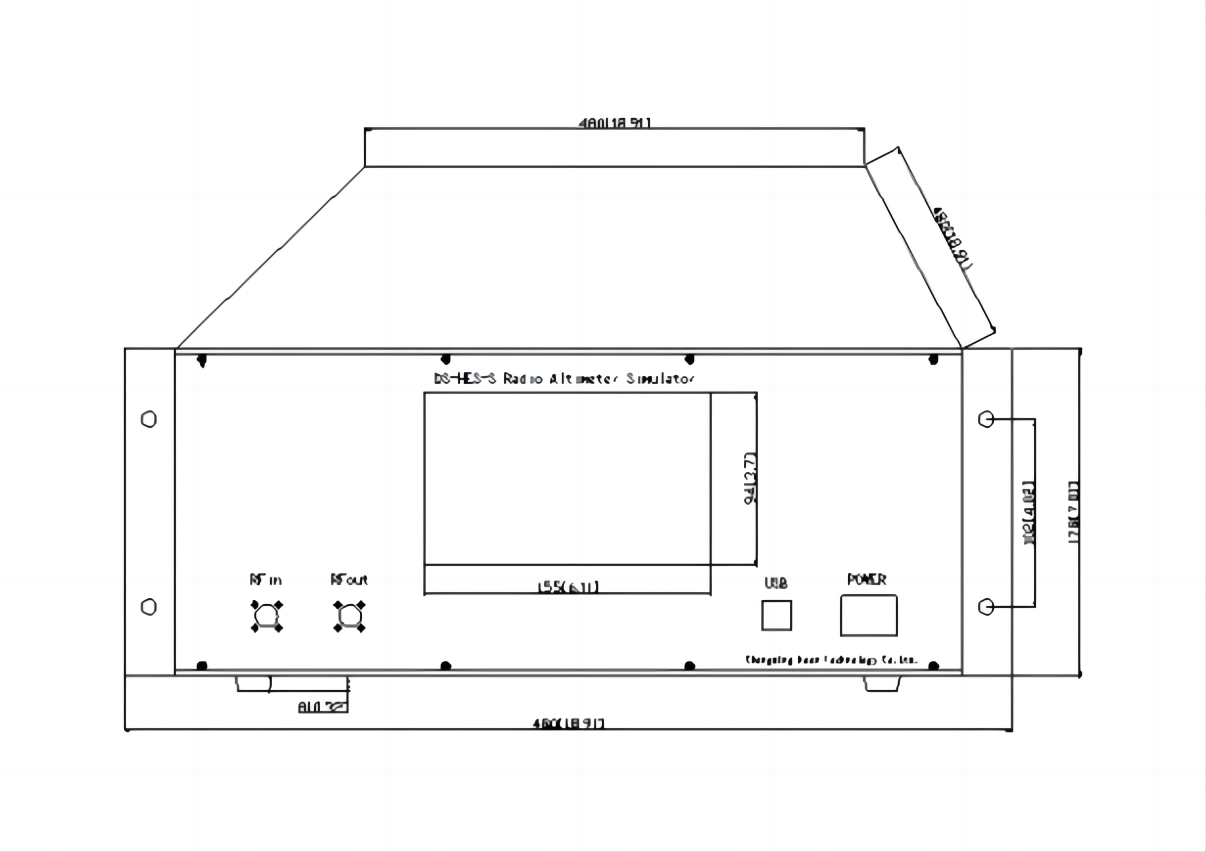

Xirmooyinka iyo biinanka (Cutub: mm[inch])
Xidhiidhiyaha RF: SMA-K (la habeeyey)
Xidhiidhiyaha DC: DE-9PS (la habeeyey)
Codsiyada
Goobta: Altimeter Radio ee radar, AEW, satellite, helicopter iyo iwm
Cabbir saxnaanta altimeter
Cabbir qaybaha cilmi-baadhista iyo dabagalka
Cabbirka xuduudaha kale
